Spatiotemporal and Sustainability Analysis of the Ecological Environment Quality in the Ulansuhai Basin Area

doi:10.13466/j.cnki.lczyyj.2024.06.008

Abstract

Abstract:

As part of the third phase of the ‘integrated conservation and management of mountain,river,forest,farmland,lake,grassland and desert ecosystems project’,exploring the spatial and temporal changes in ecological environmental quality and the factors influencing it in the Ulansuhai basin plays an important role and has practical significance for ecological environment restoration.Utilizing the MODIS dataset from the Google Earth Engine platform,we developed the Remote Sensing Ecological Index(RSEI)for the Ulansuhai Nur basin for the years 2000,2005,2010,2015,and 2020.Trend analysis and the Hurst Index were then employed to reveal the spatial and temporal changes,and the sustainable change characteristics of the region.1)The annual average RSEI in the Ulansuhai basin shows a fluctuating upward trend,indicating that the vegetation as a whole is in a state of gradual recovery.2)Persistent degradation and ambiguous future trajectories are notable in specific areas of the Ulansuhai Nur basin,underscoring the need for ongoing and focused conservation efforts.3)The quality of the ecological environment in the Dengkou and mine management areas has significantly improved,and the areas of forests and shrublands show an increasing trend.4)The improvement and maintenance of the ecological environment of the Ulansuhai basin still requires long-term monitoring and refined management.The RSEI dataset was constructed through the GEE platform,which enabled the analysis and monitoring of changes in regional ecological and environmental quality,providing references for the management and decision-making in ecological engineering governance and restoration.

Key words: RSEI, spatiotemporal changes, sustainability analysis, Ulansuhai basin area

CLC Number:

S718.55

WANG Haoqiong, HU Yi, WANG Haochen, SHU Yong, LUO Weijian. Spatiotemporal and Sustainability Analysis of the Ecological Environment Quality in the Ulansuhai Basin Area[J]. Forest and Grassland Resources Research, 2024, (6): 64-72.

Figures/Tables 9

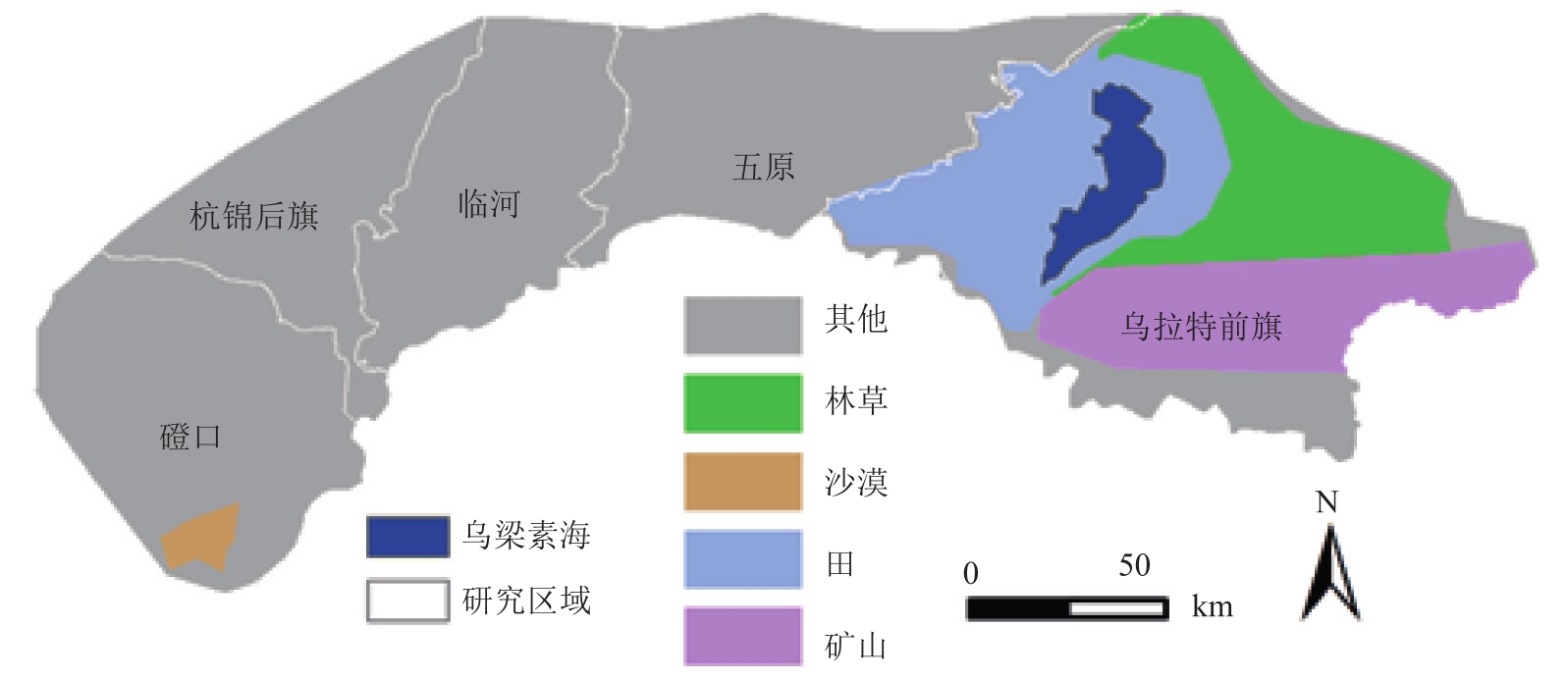

Fig.1

Tab.1

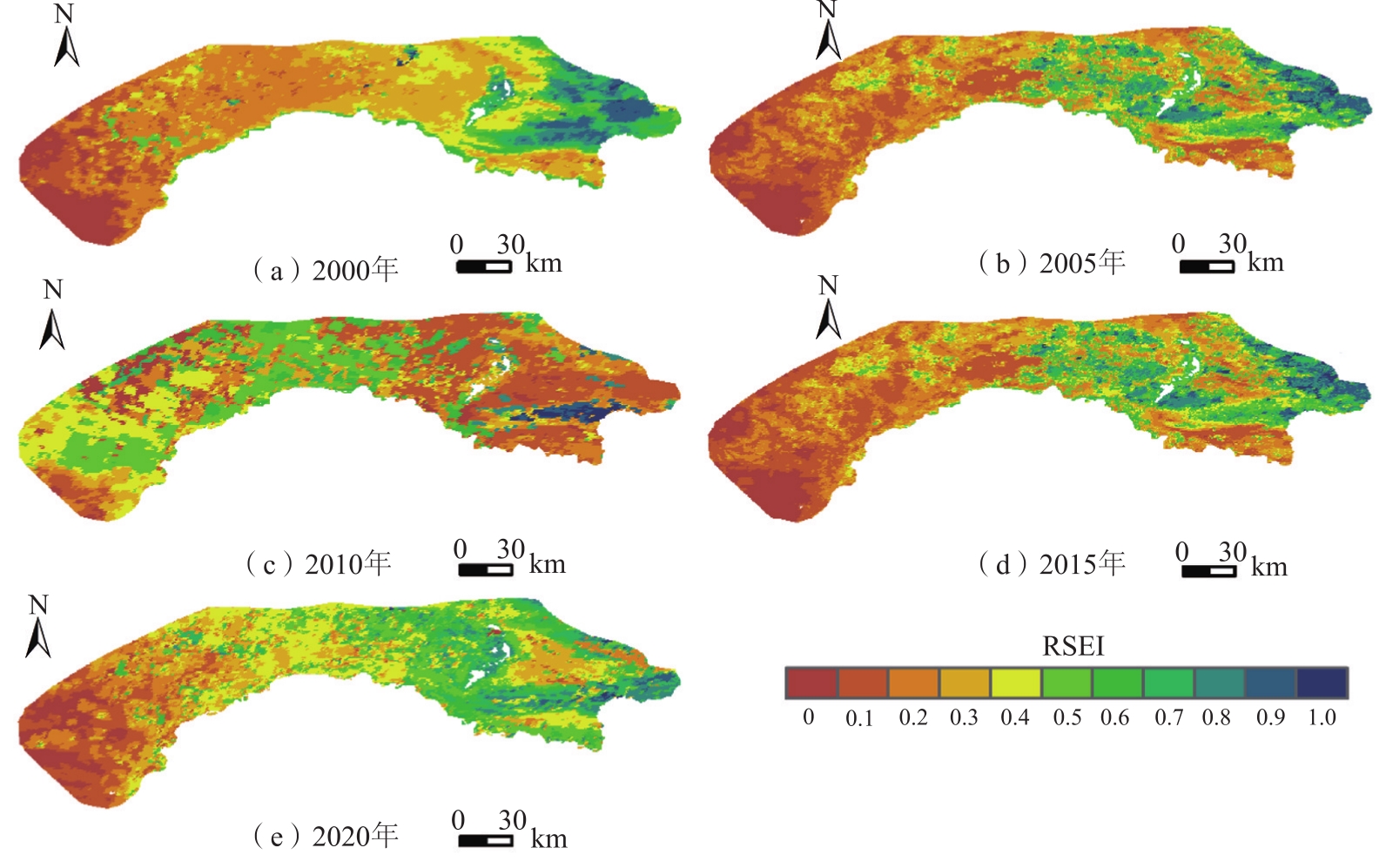

Fig.2

Fig.3

Tab.2

Fig.4

Fig.5

Tab.3

Fig.6

References 35

[1]	王夏晖, 何军, 牟雪洁, 等. 中国生态保护修复20年:回顾与展望[J]. 中国环境管理, 2021, 13(5):85-92.
[2]	孙儒泳. 基础生态学[M]. 北京: 高等教育出版社, 2002.
[3]	徐燕, 周华荣. 初论我国生态环境质量评价研究进展[J]. 干旱区地理, 2003, 26(2):166-172.
[4]	肖建红, 于庆东, 刘康, 等. 海岛旅游地生态安全与可持续发展评估:以舟山群岛为例[J]. 地理学报, 2011, 66(6):842-852.
[5]	蒋卫国, 潘英姿, 侯鹏, 等. 洞庭湖区湿地生态系统健康综合评价[J]. 地理研究, 2009, 28(6):1665-1672.
[6]	倪晓娇, 南颖, 朱卫红, 等. 基于多灾种自然灾害风险的长白山地区生态安全综合评价[J]. 地理研究, 2014, 33(7):1348-1360. doi: 10.11821/dlyj201407014
[7]	ZHANG Zhongxiang, LU W X, ZHAO Y, et al. Development tendency analysis and evaluation of the water ecological carrying capacity in the Siping area of Jilin Province in China based on system dynamics and analytic hierarchy process[J]. Ecological Modelling, 2014, 275(10):9-21.
[8]	黄和平, 彭小琳, 孔凡斌, 等. 鄱阳湖生态经济区生态经济指数评价[J]. 生态学报, 2014, 34(11):3107-3114.
[9]	杨胜天, 刘昌明, 杨志峰, 等. 南水北调西线调水工程区的自然生态环境评价[J]. 地理学报, 2002, 57(1):11-18.
[10]	DE A B C C, ATKINSON P M. Remote sensing of ecosystem services:A systematic review[J]. Ecological Indicators, 2015,52:430-443.
[11]	徐涵秋. 区域生态环境变化的遥感评价指数[J]. 中国环境科学, 2013, 33(5):889-897.
[12]	高江波, 侯文娟, 赵东升. 基于遥感数据的西藏高原自然生态系统脆弱性评估[J]. 地理科学, 2016, 36(4):580-587. doi: 10.13249/j.cnki.sgs.2016.04.012
[13]	吴宜进, 赵行双, 奚悦, 等. 基于MODIS的2006-2016年西藏生态质量综合评价及其时空变化[J]. 地理学报, 2019, 74(7):1438-1449. doi: 10.11821/dlxb201907012
[14]	ZHANG G, ZHANG Y, Dong J, et al. Green-up dates in the Tibetan Plateau have continuously advanced from 1982 to 2011[J]. Proceedings of the National Academy of Sciences of the United States of America, 2013, 110(11):4309-4314. doi: 10.1073/pnas.1210423110 pmid: 23440201
[15]	SHEN M, PIAO S, JEONG S J, et al. Evaporative cooling over the Tibetan Plateau induced by vegetation growth[J]. Proceedings of the National Academy of Sciences of the United States of America, 2015, 112(30):9299-9304. doi: 10.1073/pnas.1504418112 pmid: 26170316
[16]	李双双, 延军平, 万佳. 近10年陕甘宁黄土高原区植被覆盖时空变化特征[J]. 地理学报, 2012, 67(7):960-970.
[17]	贺帅兵, 牟林云, 甄霖. 长江三角洲生态环境脆弱带生态修复技术研究进展[J]. 生态学报, 2023, 43(2):487-495,
[18]	徐丹, 屈博, 方园皓. 黄河下游宽滩区土地利用格局时空演变及影响因素[J]. 南水北调与水利科技, 2022, 20(5):966-975.
[19]	CAO Ran, JIANG Weiguo, YUAN Lihua, et al. Inter-annual variations are vegetation and their response to climatic factors in the upper catchments of the Yellow River from 2000 to 2010[J]. Journal of Geographical Science, 2014, 24(6):963-979.
[20]	LI Caixia, JIA Xiang, ZHU Ruoning, et al. Seasonal spatiotemporal changes in the NDVI and its driving forces in Wuliangsu Lake Basin,Northern China from 1990 to 2020[J]. Remote Sensing. 2023, 15(12):2965.
[21]	ZOU Zhaohui, CHEN Chao, LIU Zhisong, et al. Extraction of Aquaculture Ponds along Coastal Region Using U2-Net Deep Learning Model from Remote Sensing Images[J]. Remote Sensing. 2022, 14(16):4001.
[22]	SUN Weiwei, REN Kai, Meng Xiangchao, et al. MLR-DBPFN:A multi-scale low rank deep back projection fusion network for anti-noise hyperspectral and multispectral image fusion[J]. IEEE Transactions on Geoscience and Remote Sensing, 2022(60):1-14.
[23]	MAHYARI A G, YAZDI M. Panchromatic and multispectral image fusion based on maximization of both spectral and spatial similarities[J]. IEEE Transactions on Geoscience and Remote Sensing, 2011, 49(6):1976-1985.
[24]	代子俊, 赵霞, 李冠稳, 等. 2000-2015年青海省植被覆盖的时空变化特征[J]. 西北农林科技大学学报(自然科学版), 2018, 46(7):54-65.
[25]	LI Caixia, XIONG Xiaoyan, WANG Lin, et al. Exploring the Potential of the Hyperspectral Remote Sensing Data China Orbita Zhuhai-1 in Land Cover Classification[J]. Photogrammetric Engineering & Remote Sensing. 2024, 90(9):611-619.
[26]	LI Caixia, CHAI Guoqi, LI Zhiyuan, et al. Spatial-temporal variation of ecological environment quality and driving factors from 2000 to 2020 in Wuliangsu Lake Basin,Northern China[J]. Frontiers in Ecology and Evolution, 2023,11:1240514.
[27]	李云帆, 李彩霞, 贾翔, 等. 乌梁素海流域生态脆弱性时空变化及其成因分析[J]. 地球信息科学学报, 2023, 25(10):2039-2054. doi: 10.12082/dqxxkx.2023.230212
[28]	CHEN Chao, LIANG Jintao, XIE Fang, et al. Temporal and spatial variation of coastline using remote sensing images for Zhoushan archipelago,China[J]. International Journal of Applied Earth Observation and Geoinformation, 2022,107:102711.
[29]	ROUSE J W, HAAS R H, SCHELL J A, et al. Monitoring vegetation systems in the Great Plains with ERTS[J]. NASA Special Publication. 1974,351:309.
[30]	GENG Jianwei, YU Kunyong, XIE Zhen, et al. Analysis of spatiotemporal variation and drivers of ecological quality in Fuzhou based on RSEI[J]. Remote Sensing, 2022,14:4900.
[31]	CAO Jianhong, LAW S H, SAMAD A R B A, et al. Effect of flnancial development and technological innovation on green growth—Analysis based on spatial Durbin model[J]. Journal of Cleaner Production. 2022,365:132865.
[32]	CHU Hongshuai, VENEVSKY S, WU Chao, et al. NDVI-based vegetation dynamics and its response to climate changes at Amur-Heilongjiang River Basin from 1982 to 2015[J]. Science of The Total Environment, 2019,650:2051-2062.
[33]	TUIA D, MOSER G, LESAUX B, et al. The 2017 IEEE geoscience and remote sensing society data fusion contest:open data for global multimodal land use classification[C]// IEEE Geoscience and Remote Sensing Magazine, 2017, 5(4):110-114.
[34]	RYU Y, BERRY J A, BALDOCCHI D D. What is global photosynthesis? History,uncertainties and opportunities[J]. Remote Sensing of Environment, 2019,223:95-114.
[35]	CAO Shixiong, SUO Xinhao, XIA Chengqi. Payoff from afforestation under the three-North shelter forest program[J]. Journal of Cleaner Production, 2020,256:120461.

年份	NDVI	NDBSI	LST	Wet	PC1特征值贡献率/%
2000年	2.42	0.009	0.004	0	99.375
2005年	6.966	0.011	0.004	0.001	99.999
2010年	13.347	0.025	0.005	0.001	99.746
2015年	7.182	1.044	0.004	0.002	88.567
2020年	6.36	1.049	0.005	0.001	86.642

RSEI变化趋势	Hurst指数	持续性变化趋势	面积占比/%	RSEI变化趋势	Hurst指数	持续性变化趋势	面积占比/%
改善	>0.5~<1	持续性改善	0.89	改善	>0~<0.5	退化趋势	38.50
不变	>0.5~<1	持续性稳定	2.84	不变	>0~<0.5	趋势不确定	43.41
退化	>0.5~<1	持续性退化	8.42	退化	>0~<0.5	改善趋势	5.95

土地利用类型	耕地	森林	草地	灌木地	湿地	水体	建设用地	裸地
2000年面积/km²	8 814.54	1.14	3 620.84	155.00	405.44	234.62	592.25	2 349.71
2020年面积/km²	9 365.90	110.63	1 745.35	1 648.32	316.35	321.99	915.99	1 749.09
增减面积/km²	551.37	109.49	-1 875.49	1 493.31	-89.10	87.38	323.74	-600.62
增幅/%	5.89	98.97	-107.46	90.60	-28.16	27.14	35.34	-34.34
