Green and Beautiful Guangdong Ecological Construction Demonstration Zone Digital Twin Application Research

doi:10.13466/j.cnki.lczyyj.2023.05.014

Abstract

Abstract:

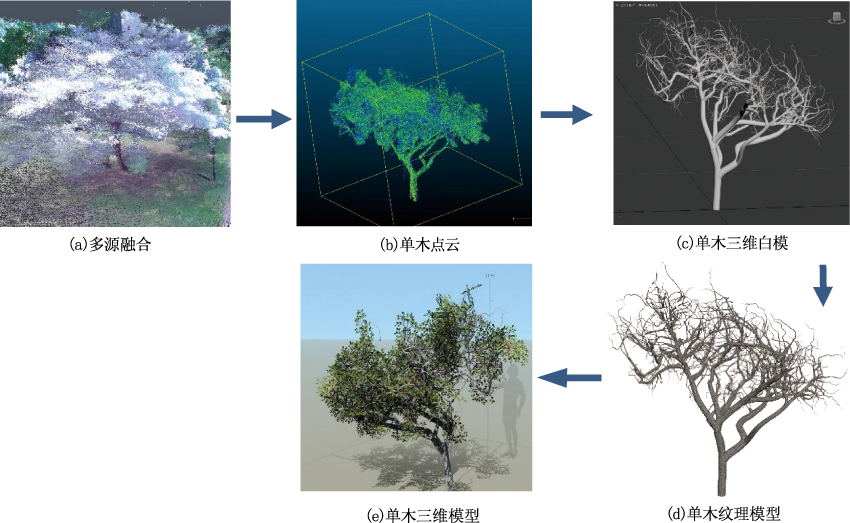

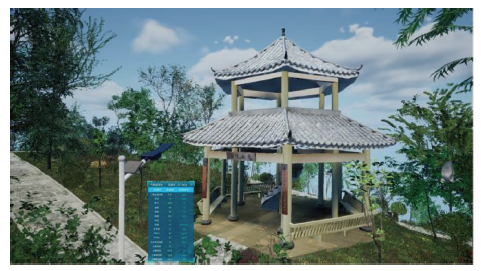

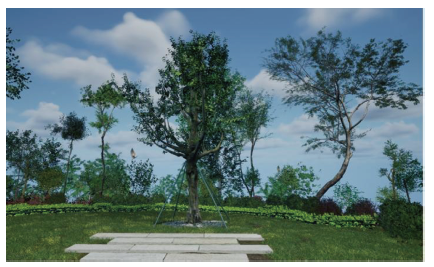

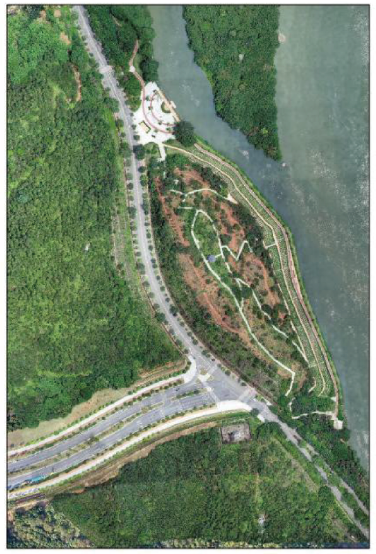

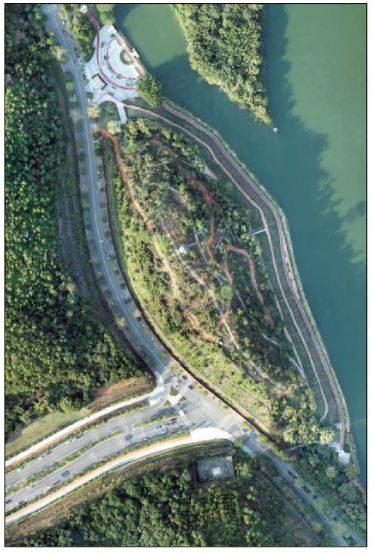

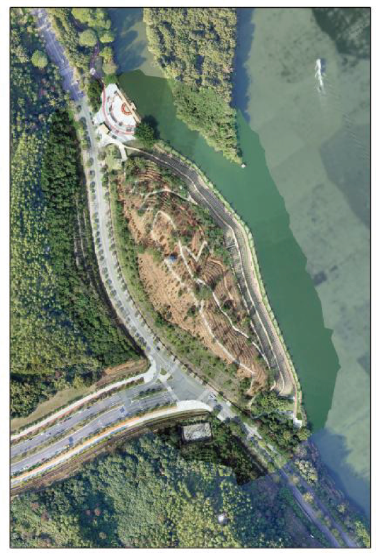

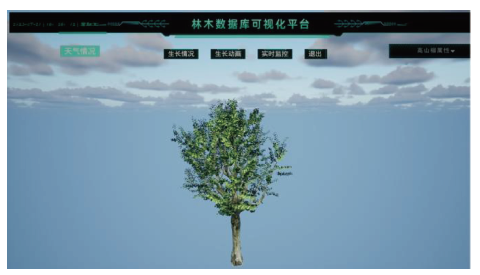

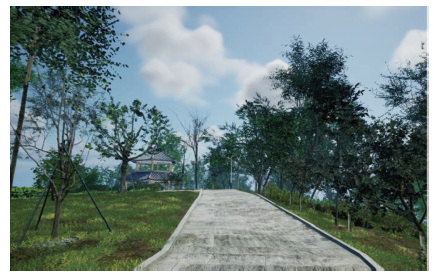

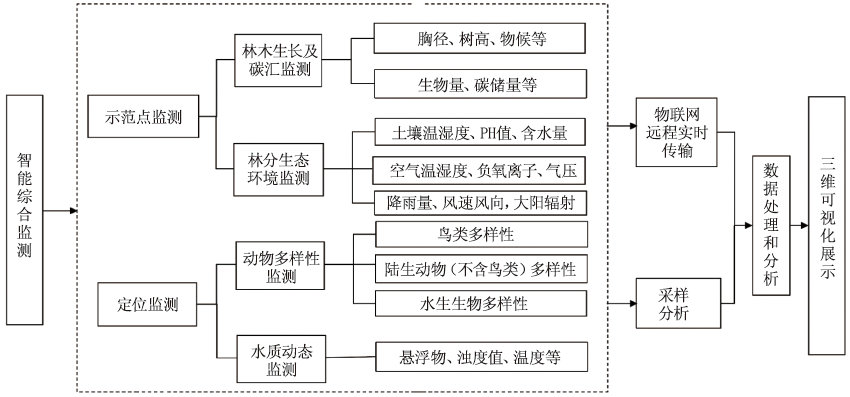

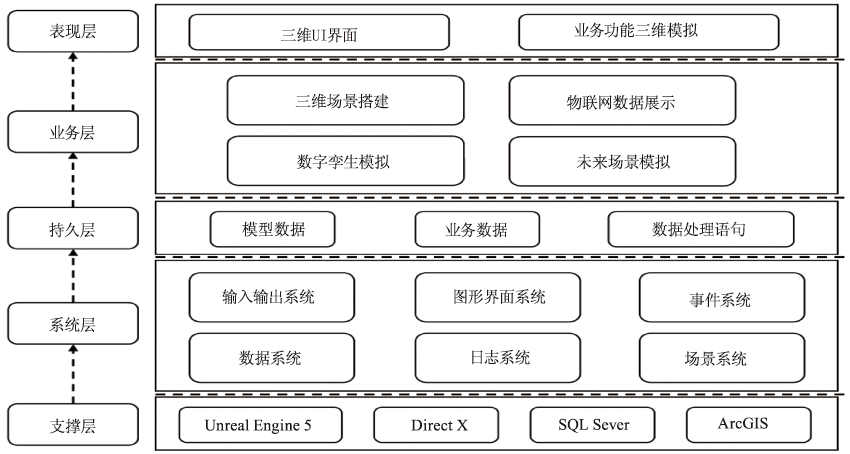

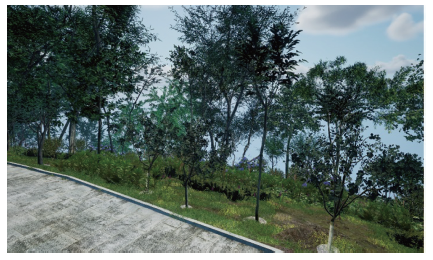

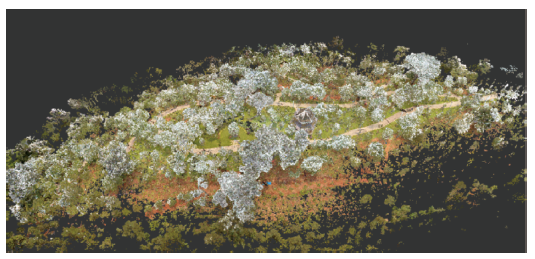

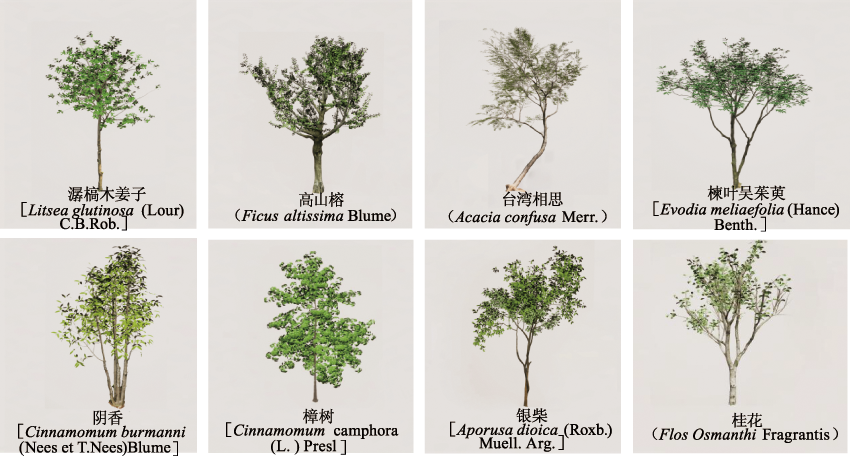

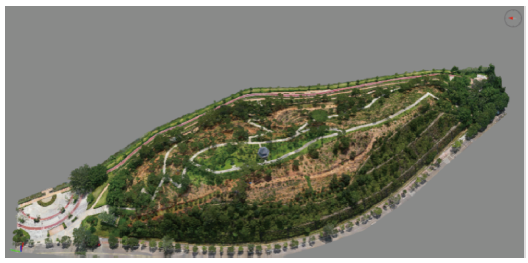

In order to build a green and beautiful Guangdong ecological construction digital twin demonstration area,this articleused point cloud generated tree 3D modeling technology to conduct 1∶1 simulation of the core location trees within the demonstration area.Based on high-resolution stereo image data obtained from oblique photography,a high-precision and standard geographic 3D forest scene was constructed by combining 3D models of trees,buildings,and terrain.At the same time,the Internet of Things data from four intelligent comprehensive monitoring points was connected,and expressed in the virtual 3D forest scene,achieving deep integration between the virtual 3D forest scene and the real forest scene.Combined with the forest growth model,the future state of the forest was simulated,and an immersive interactive digital twin system integrating data collection,model establishment,simulation analysis,and future prediction was constructed.A relatively mature technical systemwas formed through research,providing technical demonstrations and solutions for the construction of a digital twin forestry map in Guangdong Province.

Key words: digital twin, 3D visualization, point cloud modeling, 3D tree species model, 3D forest scene

CLC Number:

S731.2
TP391

MENG Xianjin, LIN Shouming, QIN Lin, HUANG Ninghui, DING Sheng, XUE Yadong, LUO Yong, YANG Tingdong. Green and Beautiful Guangdong Ecological Construction Demonstration Zone Digital Twin Application Research[J]. Forest and Grassland Resources Research, 2023, (5): 113-121.

Figures/Tables 15

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Tab.1

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

References 13

[1]	邓强, 张怀清, 李永亮, 等. 基于三维虚拟环境的林分结构调整可视化模拟技术[J]. 林业科学研究, 2016, 29(6):890-895.
[2]	牛丽红, 何先进. 基于高分辨率遥感数据提取冠幅信息在数字孪生林业平台搭建中的应用[J]. 大武汉, 2022(8):106-108.
[3]	高金萍, 高显连, 于慧娜, 等. 基于东北森林资源二类调查成果和树种专项采集数据的森林场景仿真和技术实现[J]. 林业资源管理, 2019(1):93-100.
[4]	张煜星, 许平, 任怡, 等. 基于三维技术的林地“一张图”树种库管理研究[J]. 林业资源管理, 2014(6):34-38.
[5]	李永亮, 沈康, 张怀清, 等基于CAVE2的森林虚拟仿真系统应用研究[J]. 林业资源管理, 2019(2):123-131,136.
[6]	陈凯, 林洲瑜, 洪昕展, 等. 基于虚拟现实技术的福州市街头绿地景观综合评价体系构建[J]. 林业调查规划, 2016, 41(5):135-141.
[7]	蒋娴, 张怀清, 贺姗姗, 等. 林分可视化模拟系统的设计[J]. 林业科学研究, 2009, 22(4):597-602.
[8]	刘真余, 芮小平, 董承玮. 森林三维真实感建模与可视化LOD技术研究[J]. 中国科学院研究生院学报, 2011, 28(3):322-327.
[9]	马载阳. 基于空间结构单元的杉木生长可视化模拟技术[D]. 北京: 中国林业科学研究院, 2018.
[10]	唐小平, 欧阳君祥. 森林经营方案发展综述[J]. 林业资源管理, 2022(S0):8-18.
[11]	Yan Maoling, Liu Pingzeng, Tong Cezhong, et al. A farmland-microclimate monitoring system based on the internet of things[J]. International Journal of Embedded Systems, 2020, 12(1):81-92. doi: 10.1504/IJES.2020.105282
[12]	Yan Maoling, Liu Pingzeng, Zhao Rui, et al. Field microclimate monitoring system based on wireless sensor network[J]. Journal of Intelligent and Fuzzy Systems, 2018, 35(2):1325-1337. doi: 10.3233/JIFS-169676
[13]	谭星, 冯鹏飞, 张旭, 等. 物联网技术在我国智慧林业建设中的应用现状及发展策略[J]. 世界林业研究, 2019, 32(5):57-62.

编号	北坐标/m	东坐标/m	高程/m	树种	东西冠幅/m	南北冠幅/m	枝下高/m	胸径/cm	树高/m
1	2 574 202.17	481 291.50	32.91	铁冬青	0.9	0.4	0.9	1.0	1.4
2	2 574 201.43	481 288.14	33.09	铁冬青	0.8	0.3	0.8	0.8	1.0
3	2 574 200.98	481 284.97	33.07	醉香含笑	1.0	0.3	1.3	2.5	1.9
4	2 574 200.43	481 282.30	32.95	闽楠	0.2	0.3	1.0	0.8	1.3
5	2 574 200.52	481 280.09	32.50	三桠苦	2.0	2.0	2.2	5.0	4.5
6	2 574 200.92	481 280.62	32.50	三桠苦	3.0	1.0	2.5	6.1	4.7
7	2 574 202.12	481 281.17	32.23	黄牛木	3.5	4.0	0.1	8.5	6.0
8	2 574 202.76	481 283.15	32.03	破布叶	6.0	5.5	1.7	13.8	8.0
9	2 574 205.44	481 288.16	31.12	山乌桕	3.0	3.5	2.3	8.6	5.5
10	2 574 205.38	481 293.01	30.93	刨花润楠	0.8	0.7	0.2	1.8	1.3
11	2 574 204.55	481 297.85	31.33	山乌桕	2.5	1.6	2.2	3.1	3.2
12	2 574 154.60	481 295.44	45.72	猪血木	0.5	0.6	1.1	1.6	1.6
13	2 574 202.11	481 297.55	32.31	鹅掌柴	5.0	5.5	2.3	17.0	8.5
14	2 574 202.39	481 295.84	32.64	潺槁木姜子	5.0	5.5	2.0	4.7	6.0
15	2 574 200.49	481 293.23	33.19	深山含笑	0.5	0.4	1.2	1.8	1.8
